HTXDJ型弹性吊架
HTXDJ型弹性吊架

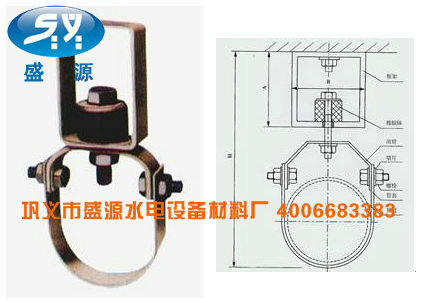

HTXDJ型弹性吊架可用作各类架空管道的隔振、与橡胶软接头、阻尼弹簧复合隔振器配套使用，对隔振、隔离固体噪声的传递有显著效果。固有频率7-11Hz、压缩变形量5-9mm。
|
型号 |
A |
B |
H |
最大载荷 |
|
XDD-25 |
100 |
50 |
150 |
80 |
|
XDD-32 |
100 |
50 |
150 |
80 |
|
XDD-50 |
100 |
50 |
175 |
100 |
|
XDD-80 |
100 |
50 |
215 |
200 |
|
XDD-100 |
100 |
50 |
240 |
250 |
|
XDD-125 |
100 |
60 |
260 |
250 |
|
XDD-150 |
100 |
60 |
300 |
400 |
|
XDD-200 |
110 |
85 |
350 |
400 |
|
XDD-250 |
110 |
85 |
410 |
400 |
|
XDD-300 |
115 |
115 |
500 |
450 |
|
XDD-350 |
115 |
115 |
550 |
450 |
|
XDD-400 |
115 |
115 |
600 |
600 |
|
XDD-450 |
115 |
115 |
680 |
600 |
|
XDD-500 |
135 |
135 |
720 |
600 |
|
XDD-550 |
135 |
135 |
780 |
600 |
|
XDD-600 |
135 |
135 |
830 |
650 |
|
XDD-650 |
135 |
135 |
880 |
650 |
|
XDD-700 |
140 |
140 |
950 |
1400 |
|
XDD-750 |
140 |
140 |
1000 |
1400 |
|
XDD-800 |
140 |
140 |
1050 |
1500 |
|
XDD-900 |
180 |
180 |
1150 |
1800 |
|
XDD-1000 |
180 |
180 |
1250 |
1800 |
